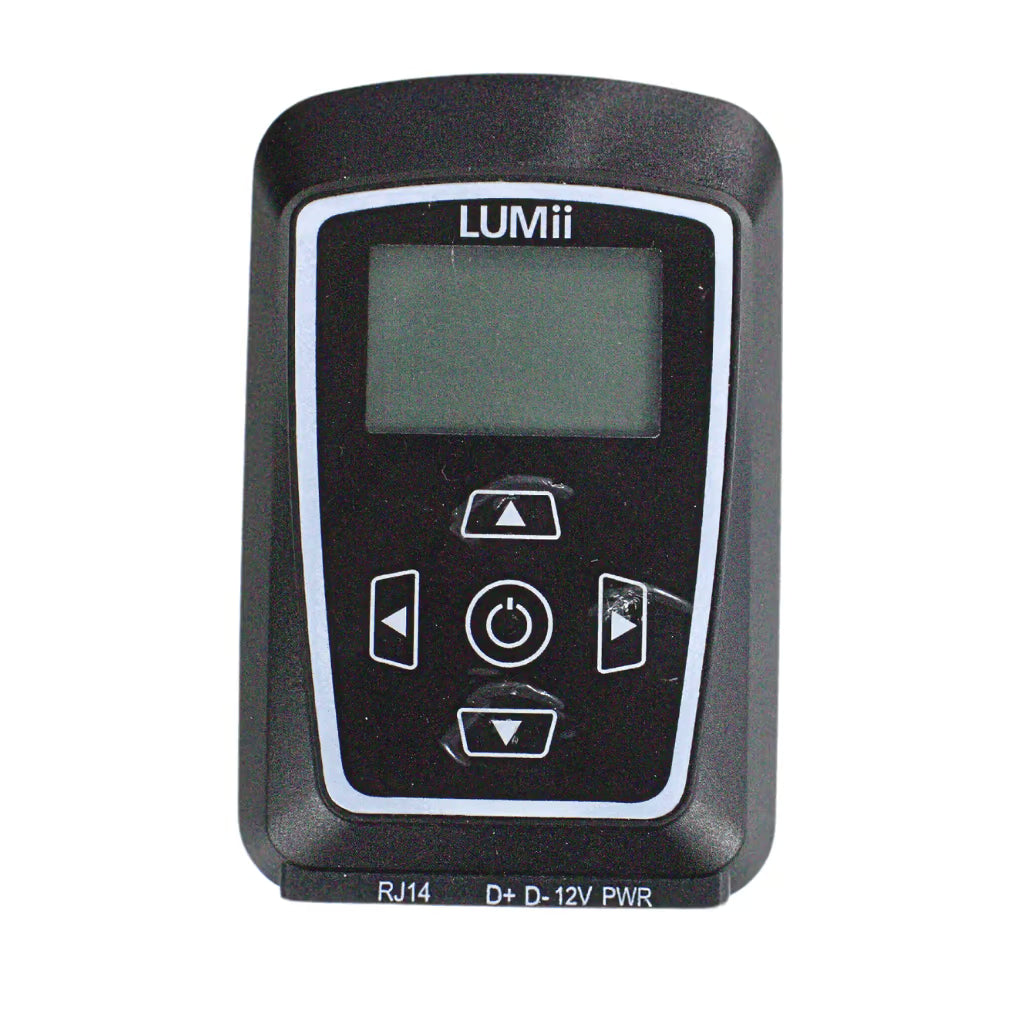

LUMii XLED Controller

The LUMii XLED Controller is designed to control the LUMii XLEDv6 680w LED fixture but can control any LED fixture which accepts 0-10V control signal. When connected to an RJ12 port, (or by wired connection to push-in terminals) it will schedule a desired daily photoperiod, control the light intensity (dimming) from 0% to 100%, and set the length of sunrise and sunset ramping. With its single channel, it will control a linked array of up to 25 LUMii XLEDv6 680w LED fixtures. The controller uses a very simple five-button control interface with LED display. It has an integral wall mounting / hanging tab and is powered from mains electricity via an adaptor plug (supplied).

Key selling points:

• Controls any LED fixture accepting 0-10V signal
• Sets photoperiod, dimming, sunrise and sunset ramping.
• Simple 5-button controls
• Mains adaptor plug supplied


Technical Specifications:

• Number of Channels: 1
• Signal Type: 0 – 10 V
• Maximum Number of Fixtures Controlled: 25
• 10 V Output Control: 0 – 10 V ± 0.1 V
• Adaptor AC Input Power: 120 – 240 V
• Controller DC Input Power: 12 V, 1.0A
• Operating temperature: 0°C - 35°C (32°F - 95°F)
• Operating Humidity: 80% RH Maximum, non-condensing
• IP Rating: IP20
